Configuration File

Core Concept

The Nerve Data Gateway is a tool that automatically fetches data from one or multiple data sources via a certain protocol and sends the data to one or multiple data sinks via a (usually different) protocol. The application is therefore usually used to achieve one of the following (or a combination of them) three tasks:

Data Aggregation: Collecting data from multiple sources and sending it to a single sink.
Data Distribution: Collecting data from a single source and sending it to multiple sinks.
Protocol Translation: Transferring data from a data source to a data sink where the sink supports a different protocol than the source.

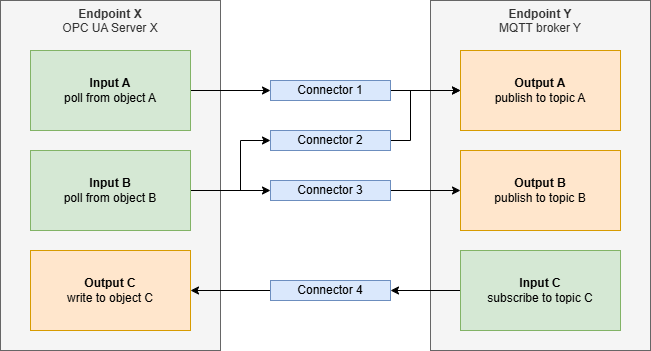

In terms of configuration, the Nerve Data Gateway uses a concept of Inputs, Connections and Outputs to represent the desired data flows. The following terminology is used for the entities that make up the configuration:

Endpoint: A network endpoint that the Nerve Data Gateway can connect to. By specifying an endpoint, the Data Gateway will be able to connect tho this external entity (to fetch or send data via Inputs and Outputs). An example of an endpoint would be a MQTT broker connection.
Input: An entity that is attached to an endpoint and actively fetches or passively receives data from the data source that is represented by the endpoint. An example of an Input would be a OPC UA polling client.
Output: An entity that is attached to an endpoint and actively sends (or passively provides) data to the data sink that is represented by the endpoint. An example of an Output would be a MQTT publisher.
Connector: An entity that connects an Input to an Output and results in the data that is entering the Nerve Data Gateway via a certain input, to be forwarded to the connected Output (and therefore the external data sink that is represented by the Output). This ultimately defines the data flow.

Using this concept for configuration should provide a high degree of flexibility (connect any data source to any data sink, allowing aggregation and distribution) while minimizing the complexity of the configuration. The following is a diagramm that illustrates the described concept:

The following is a list of restrictions and best practices that should be considered when creating a Nerve Data Gateway configuration. This is not a complete list, but a summary of the most important points. For details refer to the related chapters in the specification of the configuration file below.

Every connector connects exactly one Input to exactly one Output, but every Input and Output can be used by multiple connectors (for data aggregation or data distribution).
For maintainability it is recommended to avoid duplication which means using the same endpoint for multiple inputs and outputs if applicable. E.g. if data should be polled and subscribed from the same OPC UA server, it is recommended to use a single endpoint for both inputs (if applicable).

File Name

The configuration file must be named config.json before it is packed into a .zip archive and applied to the Data Gateway via the apply configuration mechanism provided by the Nerve platform. If the file uses a different name, it will not be detected by the Nerve Data Gateway and therefore not be applied.

Top Level Structure

The configuration file uses JSON syntax. On the top level it has 3 properties:

Parameter	Required	Valid Values	Comments
version	x	string (one of): 1.0	Version string to allow updates of the config file schema in the future
endpoints	x	array: see chapter Endpoints	Array of all endpoints
connections	x	array: see chapter Connections	Array of all connections

Example:

{
    "version": "1.0",
    "endpoints": [],
    "connectors": []
}

Endpoints

The general description of the endpoint is done via the set of parameters specified in General. Those parameters are available for every endpoint. Additionally, every type of endpoint has a set of specific configuration parameters that are only available for the particular endpoint type.

General

Each endpoint has the following parameters:

Parameter	Required	Default	Valid Values	Comments
id	x	-	unsigned integer (32 bit)	Identifier - must be unique among all endpoints
name	x	-	string	Human readable name of the endpoint
description	-	""	string	Human readable description of the endpoint
endpointType	x	-	string (one of): opcua-client mqtt-client	Type of the endpoint

Inputs

For every input, the following parameters are available. Furthermore there are additional parameters available depending on the type of input. Those are described in the subsections of the respective endpoints.

Parameter	Required	Default	Valid Values	Comments
id	x	-	unsigned integer (32 bit)	Identifier - must be unique among all inputs of the endpoint
name	x	-	string	Human readable name of the input
description	-	""	string	Human readable description of the input
inputType	x	-	string (one of): mqtt-subscriber opcua-polling opcua-subscriber	Type of the input

Outputs

For every output, the following parameters are available. Furthermore there are additional parameters available depending on the type of output. Those are described in the subsections of the respective endpoints.

Parameter	Required	Default	Valid Values	Comments
id	x	-	unsigned integer (32 bit)	Identifier - must be unique among all outputs of the endpoint
name	x	-	string	Human readable name of the output
description	-	""	string	Human readable description of the output
outputType	x	-	string (one of): mqtt-publisher	Type of the output

MQTT Client

For endpoints with type set to mqtt-client, the following parameters are available:

to the broker

Parameter		Required	Default	Valid Values	Comments
url		x	-	string (valid mqtt url): mqtt://host:port/path mqtts://host:port/path	URL of the MQTT broker protocol mqtt requires security.tlsEnabled = false protocol mqtts requires security.tlsEnabled = true
reconnectInterval		-	5	integer: 0-86400	Interval (in seconds) to be used before every new connection attempt in case of unexpected connection loss
version		-	5.0	string (one of): 5.0	MQTT version to use for the connection
clientID		-	data-gateway-client	string	MQTT client id to use when connecting
websockets		-	false	boolean	MQTT over websockets (enable / disable)
login		-	see below	object (see below)	Credentials to authenticate at the broker (if login is not provided no authentication is performed)
login	username	-	None	string	Username to authenticate at the MQTT broker
login	username	-	None	string	Username to authenticate at the MQTT broker
security		-	see below	object (see below)	Security settings
security	tlsEnabled	-	false	boolean	Enable / disable TLS/SSL
	ca	-	None	string	Filename of the CA certificate file (pem format, used to verify the broker certificate)
	certificate	-	None	string	Filename of the client certificate used for the connection (pem format)
	key	-	None	string	Filename of the key file used for the connection (pem format)
	keyPassword	-	None	string	Password for the key file
	tlsVersion	-	1.3	string (one of): 1.2 1.3	Version of TLS to use for the connection
	tlsInsecure	-	false	boolean	Enable / Disable insecure TLS (broker certificate is not verified if tlsInsecure is enabled)
advanced		-	see below	object (see below)	Advanced MQTT connection settings
advanced	keepAlive	-	60	integer: 0-65535	Interval (in seconds) between keep alive messages
	cleanSession	-	false	boolean	Enforce a clean session on connection (if true)
	willTopic	-	None	string	Topic for the last will testament (LWT) message
	willMessage	-	None	string	Content of the LWT message
	willQoS	-	1	integer: 0-2	Quality of service for the LWT message
	willRetain	-	false	boolean	Weather or not the broker shall retain the LWT message
inputs		-	[]	array	Array of inputs (input type mqtt-subscriber)
outputs		-	[]	array	Array of outputs (output type mqtt-publisher)

Example:

{
    "id": 1,
    "name": "MyBroker",
            "description": "Local MQTT Broker",
    "endpointType": "mqtt-client",
    "url": "mqtt://localhost:1883",
    "version": "5.0",
    "clientID": "NerveDGWClient",
    "login": {
        "username": "user",
        "password": "password"
    },
    "security": {
        "tlsEnabled": true,
        "ca": "mqtt_ca.pem",
        "certificate": "mqtt_cert.pem",
        "key": "mqtt_key.pem",
        "keyPassword": "password",
        "tlsVersion": "1.3",
        "tlsInsecure": false
    },
    "websockets": false,
    "advanced": {
        "keepAlive": 60,
        "cleanSession": true,
        "willTopic": "client/disconnect",
        "willMessage": "Client has disconnected",
        "willQoS": 1,
        "willRetain": false
    },
    "inputs": [],
    "outputs": []
}

Inputs

In addition to the general input parameters, the mqtt-subscriber input has the following parameters:

Parameter	Required	Default	Valid Values	Comments
inputType	x	-	string (one of): mqtt-subscriber	Type of input
messageFormat	x	-	string (one of): json protobuf	Format of the message payload
topics	x	-	array	Array of topics (see table below)

A topic has the following parameters:

Parameter	Required	Default	Valid Values	Comments
topic	x	-	string (valid topic)	Topic to subscribe to (supports wildcards `+` and `#`)
qos	-	0	integer: 0-2	Quality of service to use for subscription
rateLimit	-	0	integer: >=0	0 ... no rate limit >0 = max number of messages that are received within 1 second (sliding window). Additional messages are dropped until the number of messages within the last second is < rateLimit

Example:

{
    "id": 1,
    "name": "My MQTT Subscriber",
    "description": "",
    "inputType": "mqtt-subscriber",
    "messageFormat": "json",
    "topics": [
        {
            "topic": "data/devicex/#",
            "qos": 0,
            "rateLimit": 1000
        },
        {
            "topic": "data/devicey/+/variables",
            "qos": 2
        }
    ]
}

Outputs

In addition to the general output parameters, the mqtt-publisher output has the following parameters:

Parameter	Required	Default	Valid Values	Comments
outputType	x	-	string (one of): mqtt-publisher	Type of output
topic	x	-	-	string
qos	-	0	integer: 0-2	Quality of service to use for publishing
messageFormat	x	-	string (one of): json protobuf	Format of the Message payload

Example:

{
    "id": 1,
    "name": "My MQTT Publisher",
    "description": "",
    "outputType": "mqtt-publisher",
    "messageFormat": "json",
    "topic": "data/1/1",
    "qos": 0
}

OPC UA Client

For endpoints with type set to opcua-client, the following parameters are available:

Parameter		Required	Default	Valid Values	Comments
url		x	-	string (valid opcua url): opc.tcp://host:port/path	URL of the OPC UA server
reconnectInterval		-	5	integer: 0-86400	Interval (in seconds) to be used before every new connection attempt in case of unexpected connection loss
login		-	see below	object (see below)	Credentials to authenticate at the broker (if login is not provided no authentication is performed)
login	username	-	None	string	Username to authenticate at the OPC UA server
login	username	-	None	string	Username to authenticate at the OPC UA server
security		-	see below	object (see below)	Security settings
security	mode	-	None	string (one of): None Sign SignAndEncrypt	Security Mode
	policy	-	None	string (one of): None Basic128Rsa15 Basic256 Basic256Sha256 Aes128Sha256RsaOaep Aes256Sha256RsaPss	Security Policy
	ca	-	None	string	Filename of the CA certificate file (pem format, used to verify the broker certificate)
	certificate	-	None	string	Filename of the client certificate used for the connection (pem format)
	key	-	None	string	Filename of the key file used for the connection (pem format)
	keyPassword	-	None	string	Password for the key file
inputs		-	[]	array	Array of inputs (input type opcua-polling and/or opcua-subscriber)
outputs		-	[]	array	Currently the OPC UA Client endpoint does not support any outputs, so this must be an empty array

Example:

{
    "id": 10,
    "name": "Local PLC",
    "endpointType": "opcua-client",
    "url": "opc.tcp://localhost",
    "login": {
        "username": "user",
        "password": "password"
    },
    "security": {
        "mode": "SignAndEncrypt",
        "policy": "Basic256Sha256",
        "ca": "opcua_ca.pem",
        "certificate": "opcua_cert.pem",
        "key": "opcua_key.pem",
        "keyPassword": "password",
    },
    "inputs": []
},

Inputs

In addition to the general input parameters, the following input parameters are available:

Parameter	Required	Default	Valid Values	Comments
inputType	x	-	string (one of): opcua-subscriber opcua-polling	Type of the input
pollingIntervalMS	x	-	integer: 1-86400000	Polling interval in milliseconds (ONLY FOR inputType=opcua-polling)
samplingIntervalMS	x	-	integer: 1-86400000	The interval in milliseconds at which the server should sample the object (ONLY FOR inputType=opcua-subscriber)
publishingIntervalMS	x	-	integer: 1-86400000	The interval in milliseconds at which the server should publish the object (ONLY FOR inputType=opcua-subscriber)
nodes	x	-	array	Array of nodes (see below)

A node has the following parameters:

Parameter	Required	Default	Valid Values	Comments
node	x	-	string	OPC UA node id of the object to be polled / subscribed. See OPC UA data types for a list of supported data types
nameFromNodeID	-	false	boolean	The name of the resulting variable will be the full OPC UA node id if this parameter is true. If false, the display name of the opcua object is used. In case of a name conflict (same display name of two nodes within the same input), the conflicting variable will always use the full node id to avoid a conflict.
register	-	false	boolean	Registers the node (or all sub-nodes if the addressed node is a folder) at the OPC UA server if true. See register nodes

Example for opcua-polling input:

{
    "id": 1,
    "name": "Polling",
    "description": "",
    "inputType": "opcua-polling",
    "pollingIntervalMS": 1000,
    "nodes": [
        {
            "node": "ns=2;s=Channel1.Device1",
            "nameFromNodeID": false
        }
    ]
}

Example for opcua-subscriber input:

{
    "id": 2,
    "name": "Subscription",
    "description": "",
    "inputType": "opcua-subscriber",
    "samplingIntervalMS": 1000,
    "publishingIntervalMS": 1000,
    "nodes": [
        {
            "node": "ns=2;s=Channel1.Device2",
            "nameFromNodeID": true
        }
    ]
}

Outputs

Currently the opcua-client endpoint does not support any outputs.

Connections

Each connection must specify the following parameters:

Parameter		Required	Default	Valid Values	Comments
id		x	-	unsigned integer (32 Bit)	Identifier - must be unique among connectors
name		x	-	string	Human readable name of the connector
description		-	""	string	Human readable description of the connector
source		x	-	object (see below)	The input to connect (see below)
source	endpoint	x	-	unsigned integer (32 Bit)	Id of the endpoint that holds the input that shall be connected (must be an existing endpoint id)
source	input	x	-	unsigned integer (32 Bit)	Id of the input that shall be connected (must be the id of an existing input)
destination		x	-	object (see below)	The output to connect (see below)
destination	endpoint	x	-	unsigned integer (32 Bit)	Id of the endpoint that holds the output that shall be connected (must be an existing endpoint id)
destination	output	x	-	unsigned integer (32 Bit)	The id of the output that shall be connected (must be the id of an existing input)

Example:

{
    "id": 1,
    "name": "PLC to MQTT",
    "description": "",
    "source": {
        "endpoint": 2,
        "input": 1
    },
    "destination": {
        "endpoint": 1,
        "output": 1
    }
}

Full Example

The following code shows an example of a full config.json file:

{
    "version": "1.0",
    "endpoints": [
        {
            "id": 1,
            "name": "Local PLC",
            "endpointType": "opcua-client",
            "url": "opc.tcp://localhost",
            "reconnectInterval": 10,
            "login": {
                "username": "user",
                "password": "password"
            },
            "security": {
                "mode": "None",
                "policy": "None",
                "ca": "opcua_ca.pem",
                "certificate": "opcua_cert.pem",
                "key": "opcua_key.pem",
                "keyPassword": "password",
            },
            "inputs": [
                {
                    "id": 1,
                    "name": "Polling",
                    "description": "",
                    "inputType": "opcua-polling",
                    "pollingIntervalMS": 1000,
                    "nodes": [
                        {
                            "node": "ns=2;s=Channel1.Device1",
                            "nameFromNodeID": false
                        }
                    ]
                },
                {
                    "id": 2,
                    "name": "Subscription",
                    "description": "",
                    "inputType": "opcua-subscriber",
                    "samplingIntervalMS": 1000,
                    "publishingIntervalMS": 1000,
                    "nodes": [
                        {
                            "node": "ns=2;s=Channel1.Device2",
                            "nameFromNodeID": true
                        }
                    ]
                }
            ]
        },
        {
            "id": 2,
            "name": "MyBroker",
            "description": "Local MQTT Broker",
            "endpointType": "mqtt-client",
            "url": "mqtt://localhost:1883",
            "reconnectInterval": 10,
            "version": "5.0",
            "clientID": "NerveDGWClient",
            "login": {
                "username": "user",
                "password": "password"
            },
            "security": {
                "tlsEnabled": true,
                "ca": "mqtt_ca.pem",
                "certificate": "mqtt_cert.pem",
                "key": "mqtt_key.pem",
                "keyPassword": "password",
                "tlsVersion": "1.3",
                "tlsInsecure": false
            },
            "websockets": false,
            "advanced": {
                "keepAlive": 60,
                "cleanSession": true,
                "willTopic": "client/disconnect",
                "willMessage": "Client has disconnected",
                "willQoS": 1,
                "willRetain": false
            },
            "inputs": [],
            "outputs": [
                {
                    "id": 1,
                    "name": "My MQTT Publisher",
                    "description": "",
                    "outputType": "mqtt-publisher",
                    "messageFormat": "json",
                    "topic": "data/1/1",
                    "qos": 0
                }
            ]
        }
    ],
    "connections": [
        {
            "id": 1,
            "name": "PLC to MQTT",
            "description": "",
            "source": {
                "endpoint": 1,
                "input": 1
            },
            "destination": {
                "endpoint": 2,
                "output": 1
            }
        }
    ]
}
